V-HORN
KEY FEATURES
– Extended bandwidth
– High output horn loaded design
– Compact Form Factor
APPLICATIONS
The 215 MBH70, codename, “The Vhorn” is a high intensity Front Loaded Horn designed for maximum midbass impact from a small enclosure. Intended passband 70hz-250hz. The Enclosure is available as 4 ohm. An amplifier capable of 2400w into the nominal impedance is recommended for dynamic headroom and optimum output. cabinets can be deployed in vertical stacks or horizontal arrays no greater than 3 cabinets.

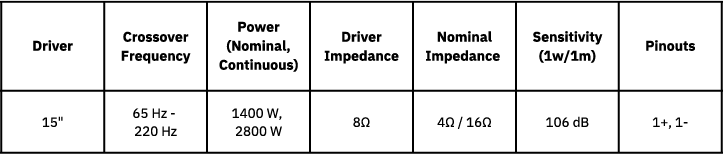

System Alignment: Dual 15 front loaded horn
System Response (-10db): 50-500hz
Frequency Response (-3db): 62-300hz
Power Rating (Continous Program Peak): 1400w/2800w/4500w
Sensitivity (I w/Imeter): 106db
Nominal Impedance: 4 Ohm
Recommended Processing: 65-100hz hipass
Enclosure Construction: Precision CNC construction, 18mm Baltic birch. 30mm bale
Exterior Coating: Polane (Custom Colors Available)
Grille Specifications: Optional 16 Gauge Black Powder coated Steel
Dimensions (DxWxH): 24x24x 36 inches
Net Weight: 155lbs
Mobility: 8 routed handles
