 Dual 18″ high-output subwoofer

 (6) Integrated handles



-Excels in enviroments that require high SPL

-Multi-genre applications

Hammer loaded with 2 18” drivers.. This front loaded horn is the (Jack of all trades) in the HSD family capable satisfying the Rock and Roll crowd down to Bass music festival goers. It’s a hybrid design with a ported rear chamber which assists in keeping the speakers cool for extreme high power handling and extreme output 140db+.

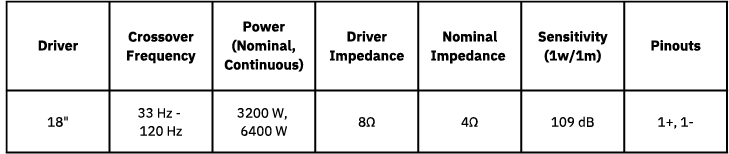

System Alignment: Dual 18″ Front Loaded Horn

System Response (-10db): -10DB @ 30Hz

Frequency Response (-3db): -3Db is 36Hz-150Hz

Power Rating (Continuous Program Peak): 3200/6400/10000

Sensitivity (Iw/I meter): 109db

Nominal Impedance: 4 or 16OHM

Reccomended Processing: 33Hz, 24Db/Octave Butterworth Hi-Pass and 60-120Hz Low-pass

Enclosure Construction: Precision CNC construction of 18 mm Baltic Birch

Exterior Coatings: Polane (Custom Colors Available)

Grille Specifications: N/A

Dimensions (DxWxH): 48x48x24″

Net Weight: 295lb

Mobility Available with Optional 3″ Locking swivel casters or custom dollies
