THE EAGLE

KEY FEATURES

• Truck Pack Dimensions

Useable Output to 30hz

• High SPL Applications

APPLICATIONS

Familiar form factor makes this the ideal enclosure for the road. Employing a 28hz hipass guarentees superior low frequency performance.

The 18flh30, code-named “The Eagle” is a Front-Loaded Horn designed for deep bass reproduction in a tried and true formfactor. Intended passband 30hz-100hz, employing a 24db/octave 29hz buttersworth hipass.



This enclosure is optimized for clusters of 4 or more, with optimum sensitivity being achieved from a block of 8.



The enclosure is available in passive 8ohm (recommended amplifier power 2500w into 8 ohms).

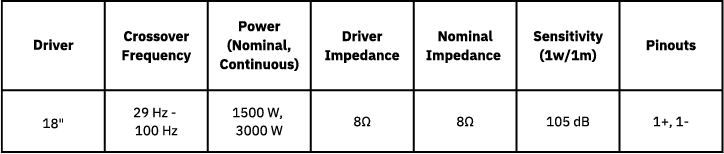

System Alignment: 18Inch Front Loaded Horn

System Response (-10db): 27hz

Frequency Response (-3db):  29hz-150hz

Power Rating (Continuous Program Peak): 1500w/3000w/6000w

Sensitivity (Iw/I meter): 105db

Nominal Impedance: 8 Ohm Passive

Recommended Processing: 29hz, 24db / octave Buttersworth Hi-pass, 60-100hz Low-pass

Enclosure Construction: Precision CNC construction, 18mm Baltic birch. 30mm baffle

Exterior Coating: Polane (Custom colors Available)

Grille Specifications: Optional 16 Gauge Black Powder-coated Steel

Dimensions (DxHxW): 45x48x22.5 inches

Net Weight: 265lbs

Mobility: Available with optional 4″ locking swivel casters or custom dollies
