THE CANNON
KEY FEATURES
• Extreme average sensitivity 106db 2.83v 1 meter
• Useable passband 65hz -225hz
• Trapazoidal cab for reduced size and weight
APPLICATIONS
Designed for when high spl in the low mid frequency bands is required. A great complement to a large stack of FLH subwoofers for dance music.
The 18MBH65, code name “The Cannon” is an 18″ straight bandpass horn designed for extremely high sensitivity and extended bandwidth.
The enclosure is available as a passive8 ohm(recommended amplifier power 2000w into 8 ohms) cabinet. the trapezoidal shape gives it an attractive form factor allowing for ease of vertical stacking with additional units.

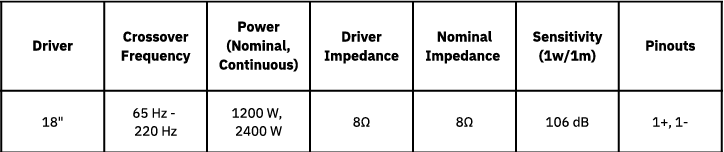

System Alignment: 18 Inch Straight Band Pass Horn
System Response (-10db): 50hz-350hz
Frequency Response (-3db): 65h2-220hz
Power Rating(Continuous Program Peak): 1200w/2400w/4000w
Sensitivity (Iw/Imeter): 106db
Nominal Impedance: 8 Ohm
Recommended Processing: 70hz 12 db/octave Buttersworth Hi-pass
Enclosure Construction: Precision CNC construction 12mm Baltic birch. 18mm baffle
Exterior Coating: Polane (Custom Colors Available)
Grille Specifications: Optional 16 Gauge Black Powder coated Steel
Dimensions (WxDxH): 30x44x24 inches, 20 inches wide on rear
Net Weight: 165lbs
Mobility: Available with Optional 3″ custom dollies
