THE REF 12
KEY FEATURES
– Pole-mountable, stand-alone or stage wedge deployable.
– Built-in HSD OEM amplifier, with (4) Presets. Custom presets available upon request.
APPLICATIONS
– Designed for DJ booth duties, however capable of handling small parties if paired with HSD DJ Monitor 18 subwoofer.
– Professional studio monitor.
-Multi-zone application (Bars, studios, art galleries, and home theaters)
The Reference 12 is a Powered medium output point source speaker designed for booth or stage monitors but can easily handle small parties when combined with our HSD DJ Monitor 18 subwoofer. A generous 1500 watt amp built in with XLR in and outputs.

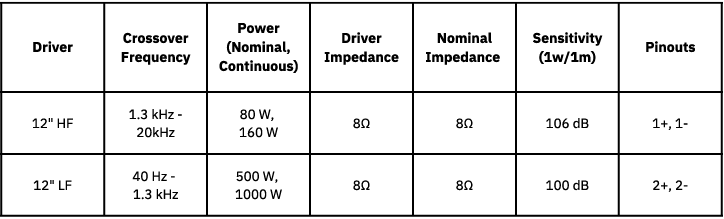

System Alignment: Point source with 12” coaxial woofer/compression driver
System response: (-10db) 50-20khz
Frequency Response: (-3db) 65-20khz
Power rating (Continuous Program Peak) 500w/1000/ 2000w
Nominal Impedance 8 ohm
Recommend Processing 60-100hz hipass
-Enclosure Construction: 12mm Baltic Birch
Exterior Finish: 3 part Polane
Dimensions: Face 16.375” wide 23.25” High 16” Deep.
Net Weight: 44lbs
Mobility: Pole mount, free standing or wedge deployment.
